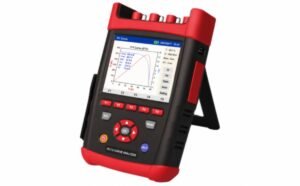

IV CURVE TESTER
IV curve Tester is a Solar PV Module Analyzer
Showing all 15 results
-
-
JMD 1123 Sensor Lab
A compact and portable sensor and transducer training system for practical learning of sensing, signal conditioning, data acquisition, and real-time measurement of temperature, pressure, light, IR, and motion.
-
JMD 1126DS Digital Workstation
JMD 1126DS Digital Workstation is a compact, easy-to-use platform for performing digital electronics experiments, circuit testing, and project development. It features an onboard DC power supply, pulse generator, data switches, logic probe, LED and seven-segment displays, graphical LCD, and solderless breadboard, supporting 51+ digital electronics experiments.
-
JMD 1226A Advanced Analog Circuits Development Platform
JMD 1226A Advanced Analog Circuits Development Platform is designed to fulfill requirement of performing experiments of analog electronics in a single platform. This makes it easy to design, experiment with, and test circuitry without soldering.
-
JMD 1227 Power Electronics Lab
Product Overview JMD 1227 Power Electronics Lab is an universal learning platform which is very useful to understand various concepts of power electronics like VI characteristics of the power electronic devices, single phase controlled rectifiers, DC to DC choppers etc. This Lab is provided with a bread board for testing their own circuits, built in…
-
JMD 1960 Understanding Solar Tracking System
JMD 1960 Understanding Solar Tracking System is a versatile training system for study and demonstration of Solar tracking.
-
MPPT Charge Controller
Control Panel to understand working of MPPT Charge Controller: Enclosure consists of any high-grade insulating material for better user safety and in compliance with IS302- 1/IEC60335-1, tested from any Govt approved lab.
-

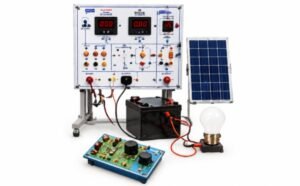

PWM Controller
Features :- Control Panel to understand working of PWM Controller: Enclosure consists of any high-grade insulating material for better user safety and incompliance with IS302-1/IEC60335- 1, tested from any Govt approved lab. Connectors: BS 10 terminals and patch cords to be provided to protect from danger. BS10 safety terminals will be in compliance with IS302-1/IEC60335-1,…
-

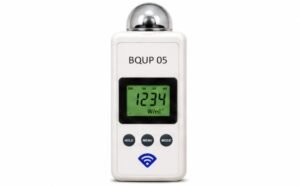

PYRANOMETER
Product Overview Handheld Device. 32-bit ARM Cortex-M3 based measurement. Low power consumption. Water and dust proof sensor casing Protective dome given for safety of sensor. Detection range 0 to 2000W/m2 Wi-fi communication Operating voltage: +5V 16×2 LCD display Sensor connector-DIN type Cable length:1meter Mobile friendly App to monitor the data remotely.
-
SOLAR ENERGY TRAINER WITH GROUPING OF SOLAR CELLS
Features : Dual channel V, I measurement system with PC interface using USB. Microcontroller Used: STM32 Number of Voltage and Current Measurement Channels: 2 channels Voltage Measurement Range: 0–36 V DC Current Measurement Range: 0–2.5 A Supply Voltage: +5 V DC Dashboard graphical user interface to be provided to see the VI curve by using…
-
Solar Street Light
Features :- The system has able to perform Real time Remote Monitoring of parameters like – Temperature, humidity, air quality, motion data through sensors On/OFF Status of light pole on console, Processor: 64bit cortex A53 ARMv8 Quad core processor 1.4GHz Connectivity: 802.11 b/g/n Wireless LAN, Bluetooth 4.1, ZigBee, USB & Ethernet RAM: 1GB LPDD2 Memory:…
-

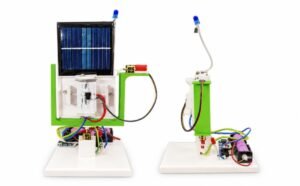

SOLAR TRACKER DEMONSTRATION KIT
Features :- Rechargeable Battery: 12V, 7Ah Display: 20 x 4 LCD Light Sensor: Phototransistor Acceleration/Vibration: +5V @ 1ma current/Tilt Sensor – 3 Axis Fuse: 1Amp (3 Nos.) DC Adaptor: 12V @ 1Amp With 8-bit AVR microcontroller running up to 20 MHz with an Operating voltage of 1.8–5.5 V. It has 32 KB Flash, 2 KB…
-

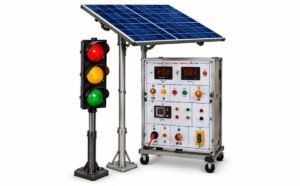

Solar Traffic Light
Features :- 12V, 16Ah battery, 75 Wp solar panel GI structure for solar panel with halogen lamp mounted on a stand for performing Inside Lab experiment, 12V, 10A dusk to dawn charge controller, 15W LED light and 5 Feet height pole(for inside Lab operation) All above things to be provided for lab purposes so that…
-

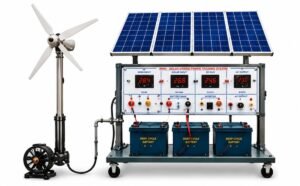

Solar, Wind and Hybrid Power Plant
Features :- Hybrid Control panel it has both Solar and Wind turbine inputs. Solar PV Modules Wattage: 1 K Wa t t Battery: – 7 5 A h – 2 n o s . Wind Turbine : 300 watt Charging Current: minimum 300Ma approx. Actual Output Power : minimum 10watt (generated at wind speed of…
-

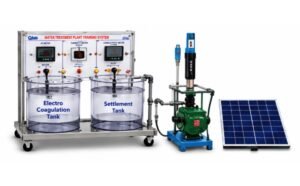

Used Water Treatment Solar Plant Demonstrator Kit
Features :- The system It has following technical specifications: Microcontroller based Constant Current Power Supply with LCD Transparent Tank for better visibility of process Discharge outlet for easy removal of sludge Aluminum and Stainless-Steel Electrodes for comparative study Electro coagulation Tank Volume: 1L Material: Acrylic Settlement Tank Volume: 500ml Material: Acrylic
